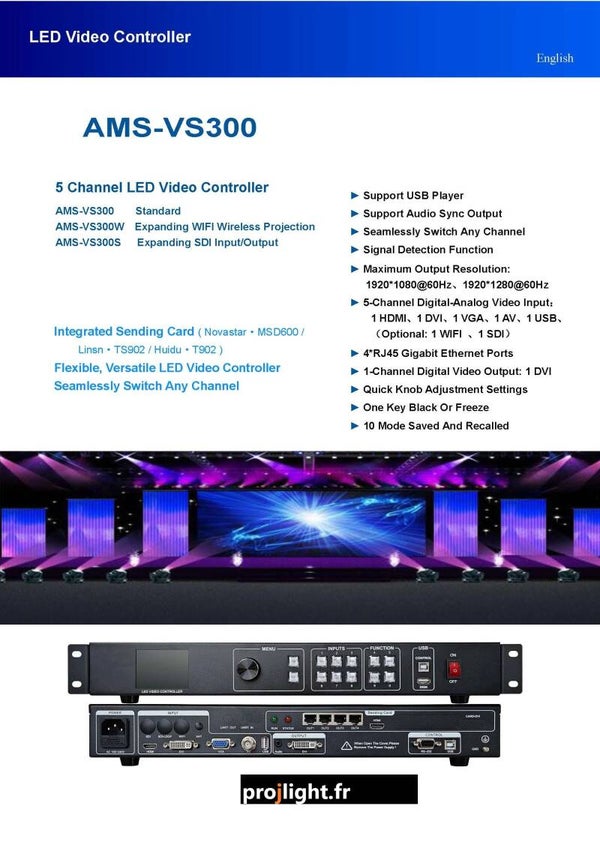

Processeur led vidéo VS300 4 sorties

Processeur led vidéo VS300 [ sur commande ]

Video Input

Quantity / Signal Type

1 Composite Video PAL、NTSC、PAL-M/N、SECAM
1 VGA Input VESA Standard，MAX 1920x1080@60Hz
1 DVI Input VESA Standard，MAX 1920x1080@60Hz
1 HDMI Input 480i/p、576i/p、720p、1080i/p，
Color Depth 8、10、12 Bit
1 USB Support Picture & Video Player
1 WIFI (Optional) Standard 802.11n
1 SDI (Optional) 1080p 60/50/30/25/24/25(PsF)/24(PsF)
720p 60/50/25/24、1080i/1035i、625/525 line
Connector 1 BNC Socket Composite Video Input
1 15-pin HD Socket RGB Input
1 DVI-I Socket DVI Input
1 HDMI Socket HDMI Input
2 BNC Sockets (Optional) Composite Video Input
1 USB Socket USB input
1 USB-B socket Sending Card Parameter Sets
Resolution Range 640x480～1920x1080 480i/p、576i/p、720p、1080i/p
Point-to-point SamplingBlanking
Video Processing
Analog Sampling 12 Bit Per Color; 13.5 MHz Standard (Video)
170 MHz Standard (RGB)
Digital Pixel Data Bit Depth 8, 10 or 12 Bit Per Channel; 3GHz Standard (SDI)

Video Output

Quantity / Signal Type 1 DVI VESA
Connector 1 DVI-I(24+5) 1DVI Programming Output
Resolution After Image
Resolution Conversion
1024×768@60Hz
1280×720@60Hz
1280×1024@60Hz
1600×1200@60Hz
1920×1080@60Hz
1920×1200@60Hz
1920x1280@60Hz
Network Port Output
Signal Type/Quantity
4 x RJ45 Gigabit Ethernet ports
Capacity per port up to 650,000 pixels
Redundancy between Ethernet ports supported
